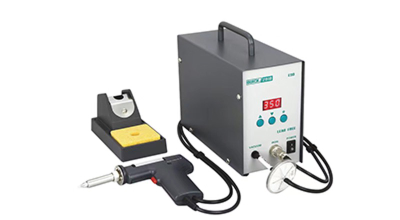

QUICK 201B temperature control desoldering and tin suction gun LED digital display, button temperature adjustment, high-frequency eddy current heating technology, high heat conduction efficiency, rapid temperature return. Its handle is specially designed with tin suction nozzle and heating pipe diameter, which is easy to maintain and portable and has strong and stable thermal efficiency. A unique vacuum pump is built into the muzzle, with stronger suction, more stable performance, and improved working efficiency. Closed loop temperature control, accurate temperature, rapid heating. Anti-scald vacuum tube, heat-generating parts protection, safe and durable. ESD electrostatic prevention and control, double grounding, to ensure the safety of electrostatic protection. It can be widely used in surface and through-hole device tin extraction.

Product parameters:

Model: QUICK 201B

Suction tin pump power: 12V/2A

Heating power: 120W

Tin absorption temperature: 200~450℃

Vacuum degree: 600mmHg

Nozzle to ground resistance: <2Ω

Nozzle to ground potential: <2mV

Dimensions: 105*250*165mm

Weight: about 4.8kg
